Cabstrut cable tray systems manufactured in accordance with BS EN 61537:2007

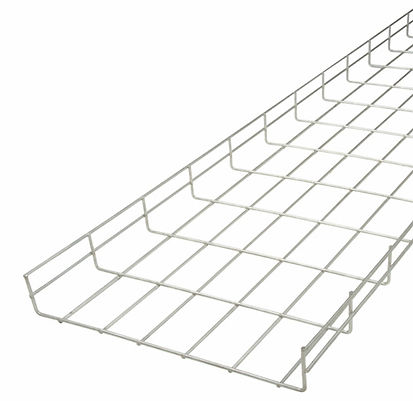

WWMD Medium Duty Welded Wire Mesh Cable tray straights and standard accessories are manufactured from Hard-drawn High Tensile steel wire - ?ò4mm thick and then hot-dip galvanised after manufacture to SANS 121:2001 / ISO 1461:2009 (HDG).

Please note (SG) finish on all Welded Wire Mesh products is available on request only and is only manufactured to order.

Standard Length: 3000mm

Sidewall Height: 50mm (2 longitudinal wires at 25mm centres)

Pitch (Wire Apertures): 100 x 50mm & 50 x 50mm.

All Accessories Pitch (Wire Apertures): 50 x 50mm.
