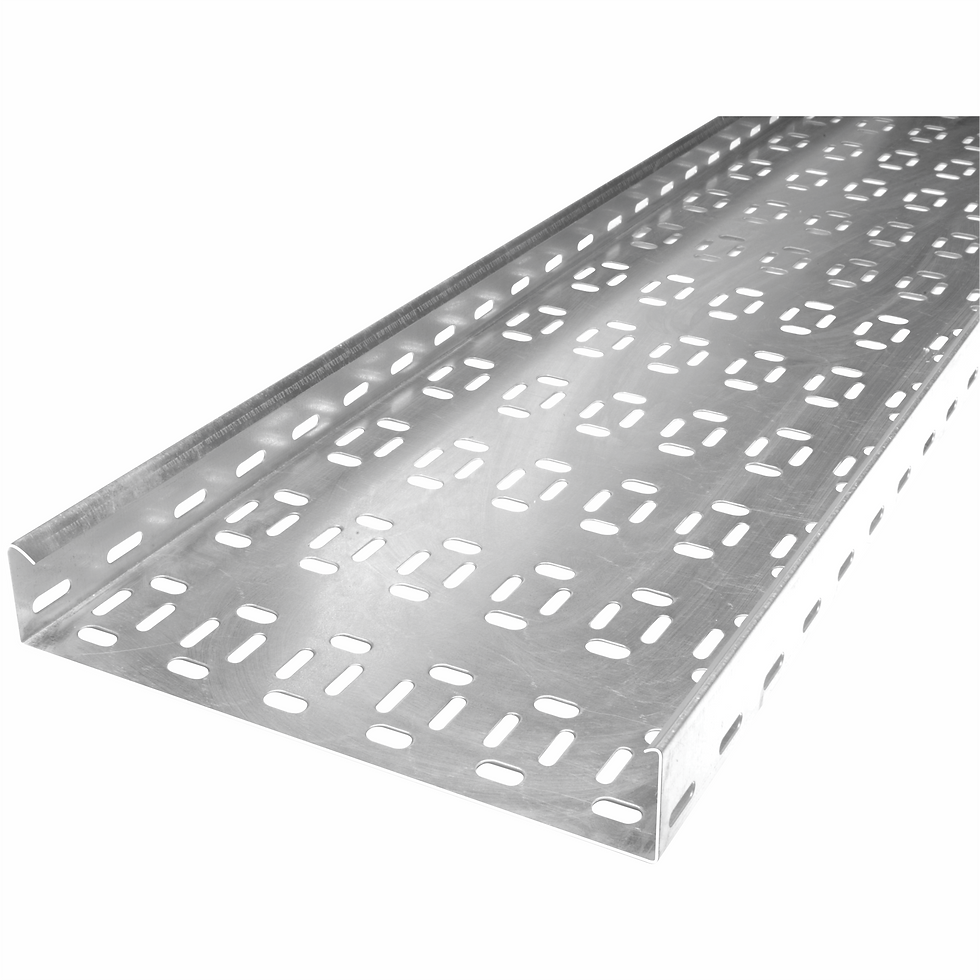

RETURN FLANGE CABLE TRAY -

HEAVY DUTY (RFHD) STRAIGHT CABLE TRAYS

• Cabstrut cable tray systems manufactured in accordance with BS EN 61537:2007

• RFHD Heavy Duty Return Flange Cable tray straights and standard accessories are manufactured from pre-galvanised steel to SANS 3575:2008 / ISO 3575:2005, normally grade Z275. (HDG prices available on request).

• Standard Length: 3000mm

• Slots Size Longitudinal: 25 x 7.5mm

• Slots Size Lateral: 20 x 11mm

• Pitch: 38 x 25mm

• Side Rail Height: 50mm (1 Slot)
